RadSight Industrial Terminal
Industrial Dosimetry and Access Terminal
Description

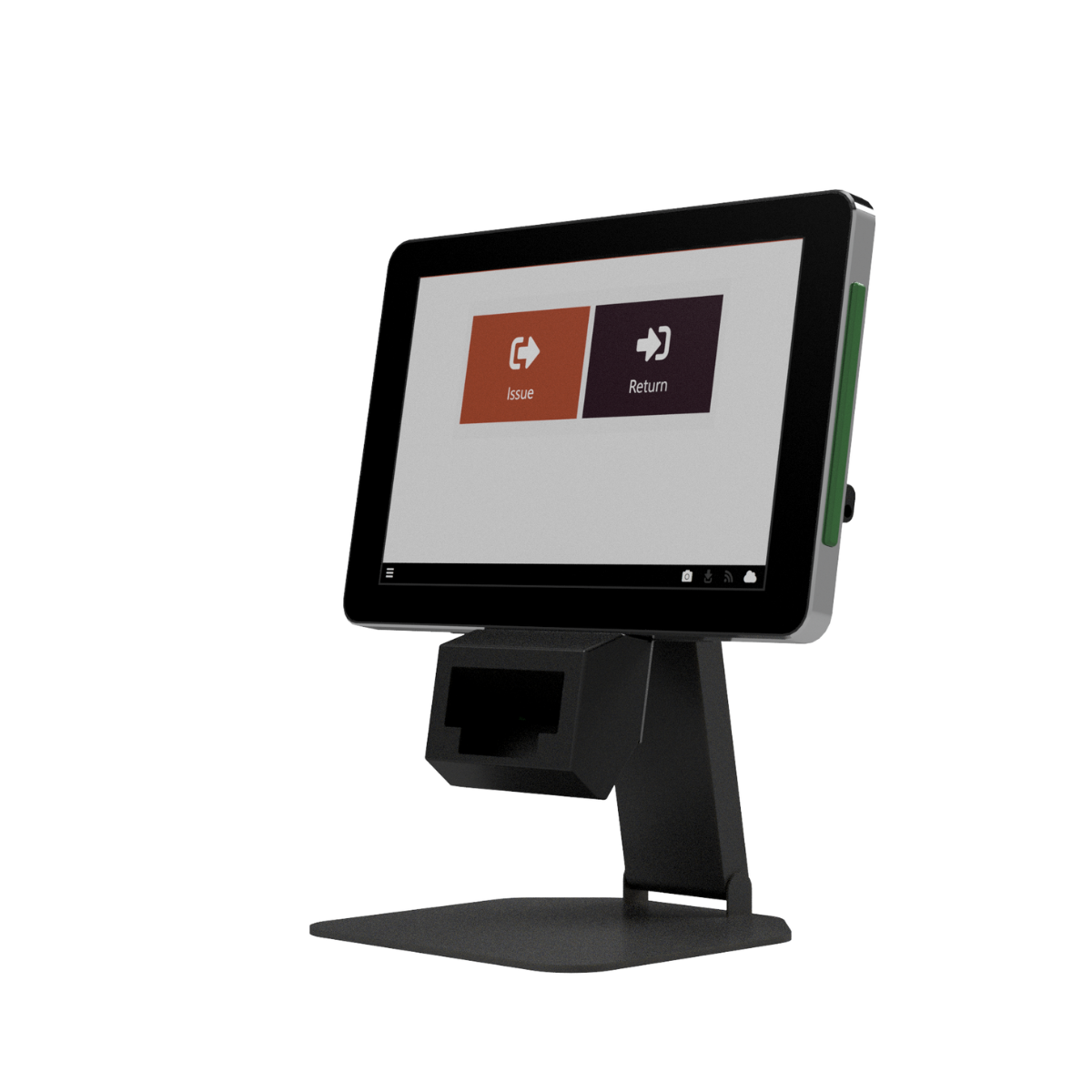

The RadSight Industrial Terminal is a networked dosimetry and access station built for radiologically controlled areas in nuclear, defence, and industrial facilities. Housed in a metal enclosure rated for -10°C to +50°C operation, it issues and returns electronic personal dosimeters, records entry and exit times, and logs dose received without manual paperwork.
An integrated IR and Bluetooth reader supports EPD TruDose and EPD MKII devices out of the box. The IP65-rated touchscreen is designed for glove operation, so staff can complete issue and return checks without removing PPE.
Multiple terminals can be networked across a site and run either of two RadSight software modules: RadSight Access, for dosimetry issue and return with reporting, or RadSight Live, which adds real-time dose display and alarm thresholds on screen. Both keep historical dose records accessible for audit and reporting.
Key Features
Industrial-Grade Housing

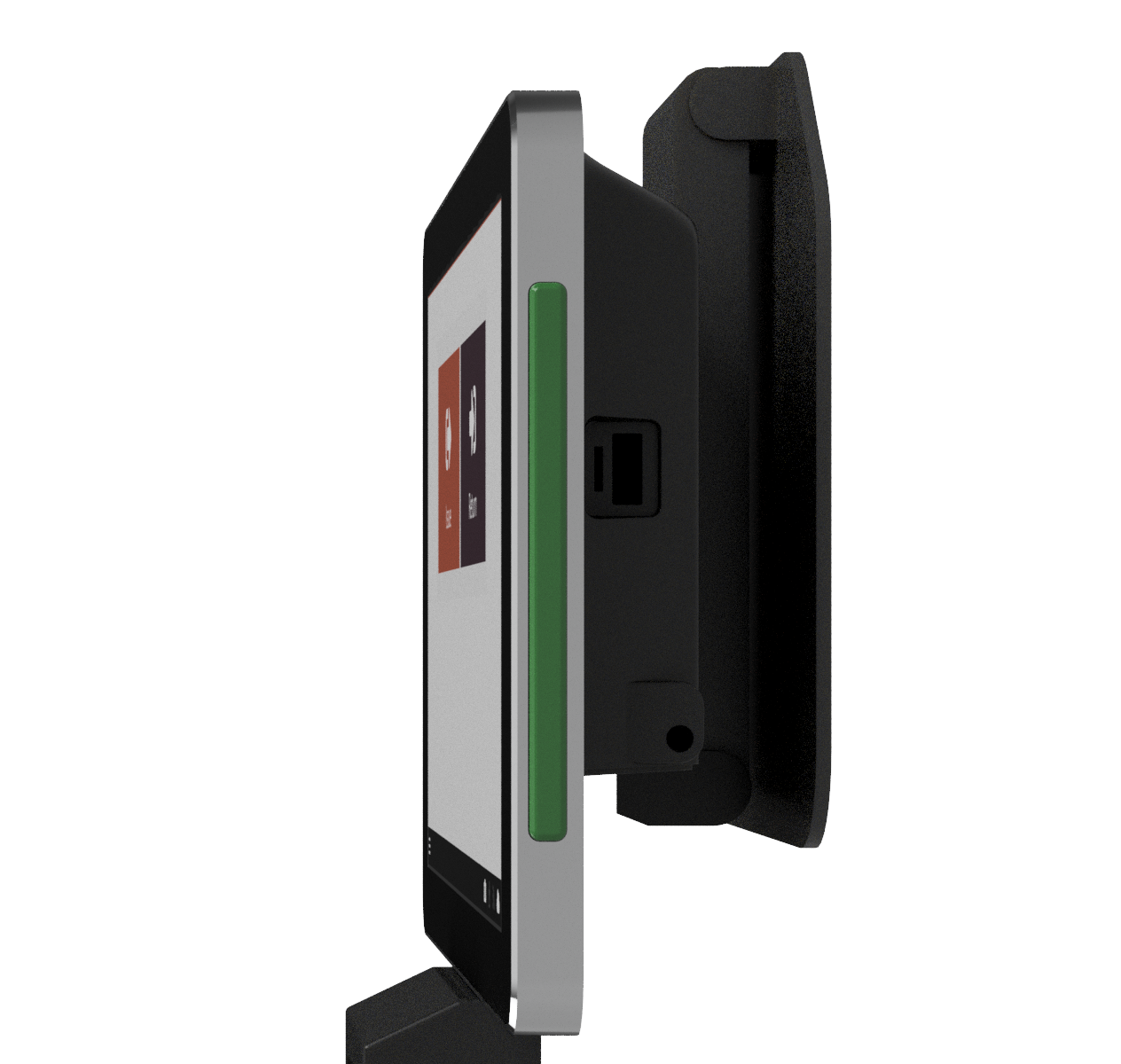

A metal enclosure built to operate reliably from -10°C to +50°C, with side-mounted light bars that give alarm status visibility across the room.
EPD Issue, Return, and Live Dose Monitoring
An integrated IR and Bluetooth reader supports EPD TruDose and EPD MKII devices. Entry, exit, and dose received are recorded automatically at issue and return.
Glove-Friendly, IP65-Rated Touchscreen
A 10.1-inch touchscreen with a protective glass surface, sealed to IP65 and built for operation without removing gloves.
Networked Across the Site
Multiple terminals can be networked to manage radiation data across an entire facility, with records held centrally rather than at each station.
RadSight Access or RadSight Live
Runs either RadSight Access, for dosimetry issue, return, and reporting, or RadSight Live, which adds real-time graphical dose display and alarm thresholds. Upgradeable without a hardware change.
Product Images
Specifications
Physical Properties
Screen Size: 10.1"
Storage: SSD 128 GB
RAM: 4 GB
Processor: Intel Celeron N6211
Security: TPM 2.0
Design: Includes side-mounted light bars
Operating Temperature: -10°C to +50°C
IP Rating: Front Panel IP65
Weight: 1.2 kg
Housing Material: Metal
Power: PoE, 12V DC, 3-Pin Terminal block
Certification: FCC, CE
Included Components
Panel PC: 10" Panel PC with PCAP touch-screen
Software: Pre-installed RadSight software (appropriate licence required)
EPD Reader: Integrated EPD reader slot with IR reader
Alarm Indicators: LED alarm indicators
Mount: 75 x 75mm VESA mount
Stand: Adjustable desktop stand
Wall Mounting: Optional wall mounting plate
Data Export: USB Type-A connector
Product Information
CDM56015: RadSight Access licence
CDM56090: RadSight Live licence
