RadSight Medical Terminal
Medical Dosimetry and Dose Monitoring Terminal
Description
The RadSight Medical Terminal is a dosimetry and dose-monitoring station built for clinical environments, where staff move between radiation-exposed procedures throughout the day. Its rugged PC/ABS housing and 10-point, glove-operable touchscreen are certified to EN 60601-1 and EN 60601-1-2, and the terminal operates reliably from 0°C to +40°C.
An integrated holder and reader is built for the Polimaster RadFlash PM1630, so dosimeters can be assigned to individuals through a colour-coded or issue and return workflow, with live dose data displayed graphically on screen. Coloured bars and an optional audible alarm flag when dose limits are being approached or exceeded.
Terminals can be networked across a department or site, and historical dose data remains accessible for reporting and analysis through RadSight Access or RadSight Live.
Key Features
Medical-Grade Housing
A durable PC/ABS enclosure with a 10-point, 6H scratch-resistant touchscreen, certified to EN 60601-1 and EN 60601-1-2 for use in clinical environments.
RadFlash Compatible

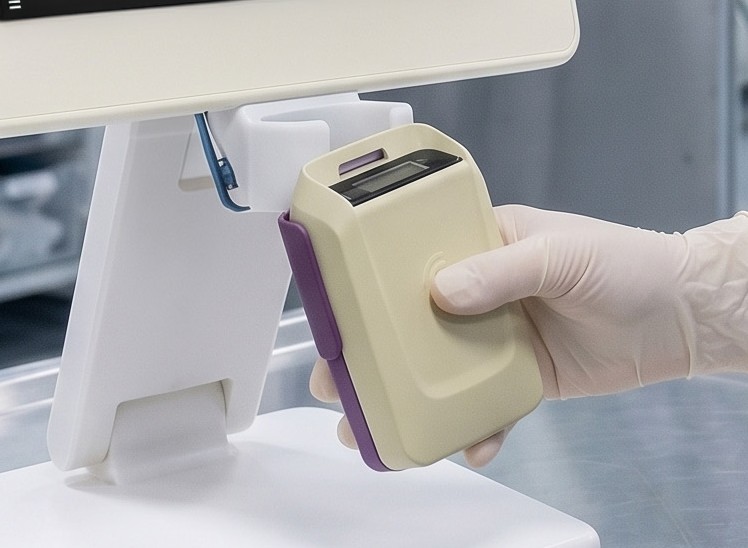

An integrated holder and reader built for the Polimaster RadFlash PM1630, delivering real-time dose feedback during medical procedures.
Glove-Friendly Touchscreen
An IP65-rated touchscreen designed for control through multiple layers of surgical gloves, without loss of accuracy or responsiveness.
Live Dose Monitoring
Dosimeters are assigned by a colour-coded system or an issue and return process, with live dose data displayed graphically and flagged in colour as limits are approached.
Networked Across the Department
Multiple terminals can be networked to manage radiation data across an entire site, with historical records held centrally for reporting and analysis.

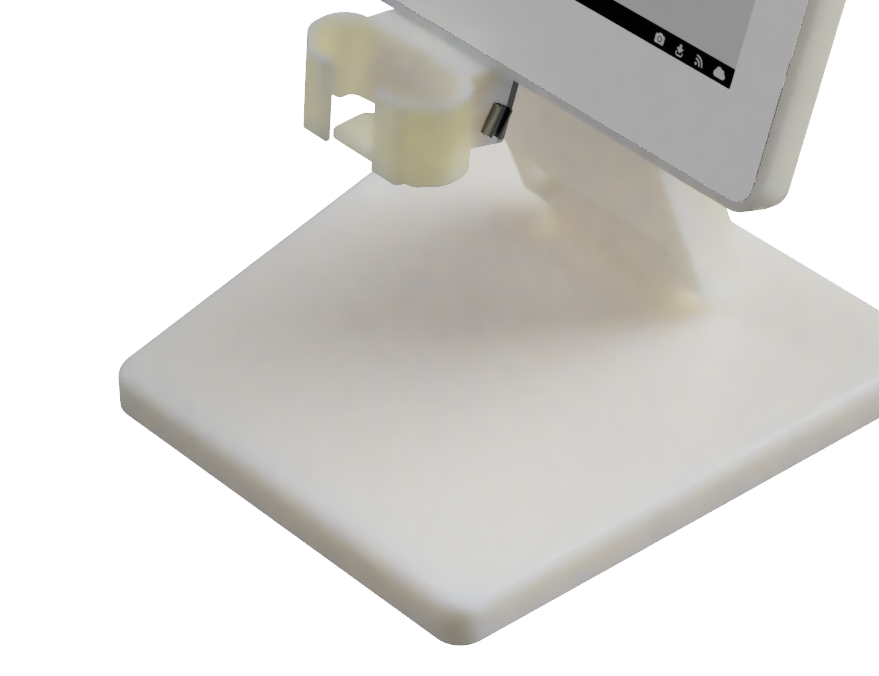

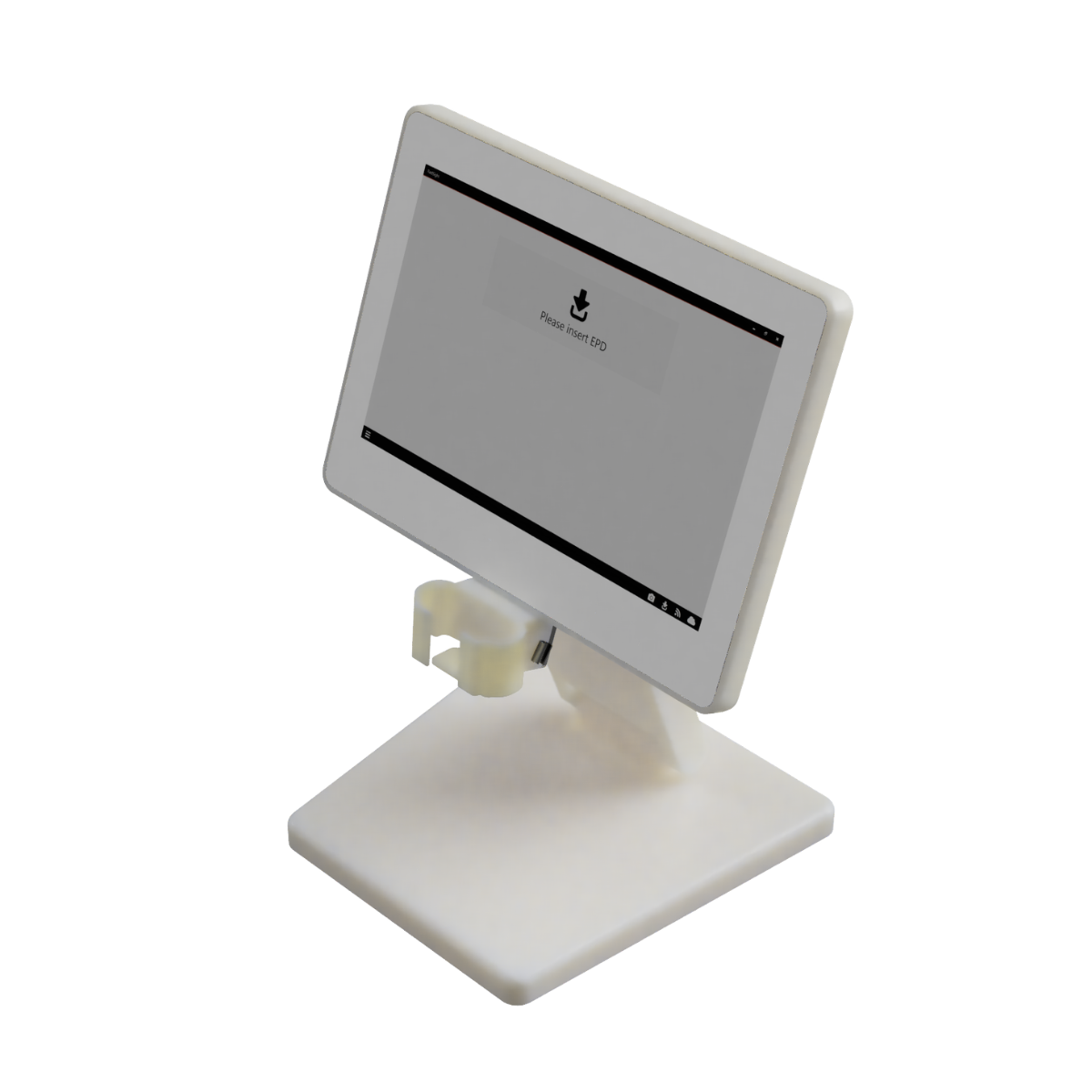

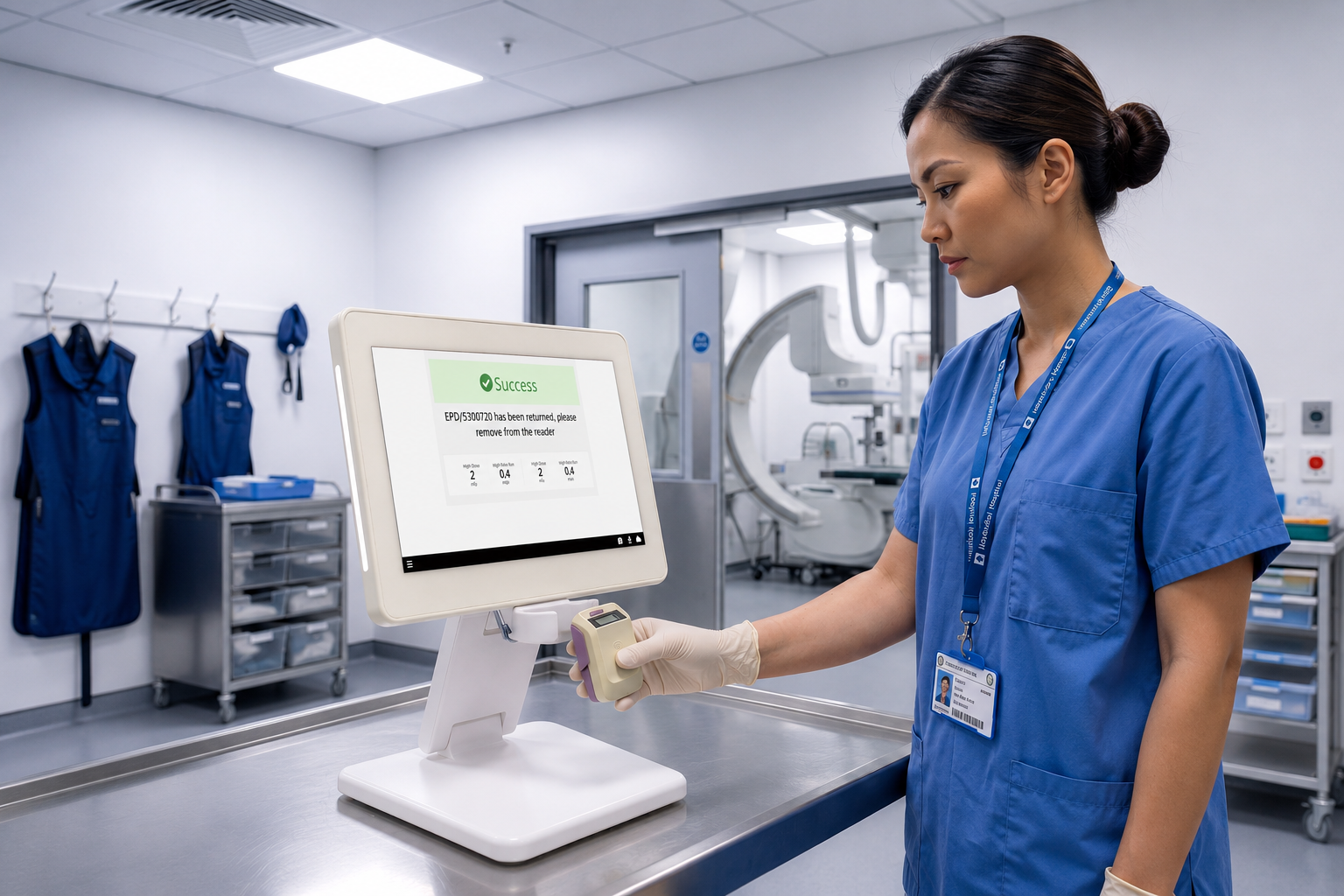

Product Images
Specifications
Physical Properties
Screen Size: 10.1"
Storage: SSD 256 GB
RAM: 4 GB
Processor: Intel Celeron N6210
Security: TPM 2.0
Design: Includes side-mounted light bars
Operating Temperature: 0°C to +40°C
IP Rating: Front Panel IP65
Weight: 1.49 kg
Housing Material: Rugged PC/ABS plastic
Power: PoE, 12V DC
Certification: FCC, CE, EN 60601-1, EN 60601-1-2
Included Components
Panel PC: 10" Panel PC with PCAP touch-screen
Software: Pre-installed RadSight software (appropriate licence required)
RadFlash Reader: Integrated RadFlash holder / reader
Alarm Indicators: LED alarm indicators
Mount: 75 x 75mm VESA mount
Stand: Adjustable desktop stand
Wall Mounting: Desktop stand also includes wall mount option
Data Export: USB Type-A connector
Product Information
CDM56091: RadSight Live licence
CDM56017: RadSight Access licence
